R-AWPD
R-AWPD

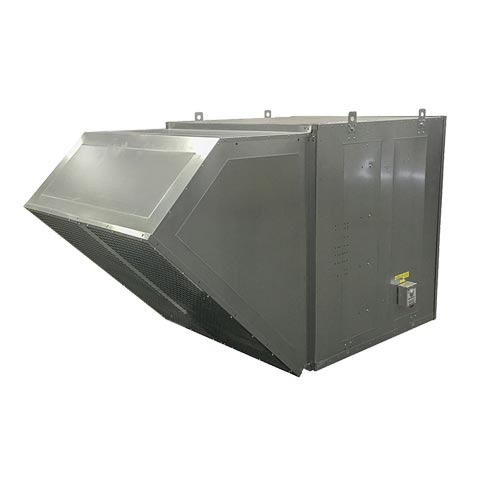

Direct Drive Axial Wallmount Fan

(R-AWPD)

Wall Propeller Direct Drive Fan For Applications Requiring Large Air Volumes

  • Air Volume: 1 – 80,000 cfm
  • Maximum SP: 2" wg. @ standard air density
Contact Sales Rep

Features

  1. Steel propellers mounted directly on motor shaft
  2. All propellers are statically and dynamically balanced
  3. Heavy gauge G90 steel housing/frame construction
  4. Riveted frame assembly for precise part alignment
  5. Precision spun orifice for smooth performance
  6. Disconnect Switch

Options

  1. Heavy duty gravity dampers
  2. Heavy duty motorized dampers
  3. Wall box
  4. Rear guard
  5. Weather hood
  6. Weather hood screen
  7. Cast aluminum propellers

Certifications

Models R-AWPD20 thru R-AWPD72 are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.

Catalog #110R

September 2017

Resources

Models

  1. R-WPD-20-MS 20" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  2. R-WPD-24-A 24" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  3. R-WPD-24-MS 24" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  4. R-WPD-30-A 30" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  5. R-WPD-30-S 30" Wall Propeller Direct Drive Fan (Steel Prop) For Light Duty Applications Requiring Large Air Volumes.
  6. R-WPD-30-X 30" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  7. R-WPD-36-A 36" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  8. R-WPD-36-S 36" Wall Propeller Direct Drive Fan (Steel Prop) For Light Duty Applications Requiring Large Air Volumes.
  9. R-WPD-36-X 36" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  10. R-WPD-42-A 42" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  11. R-WPD-42-S 42" Wall Propeller Direct Drive Fan (Steel Prop) For Light Duty Applications Requiring Large Air Volumes.
  12. R-WPD-42-X 42" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  13. R-WPD-48-A 24" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  14. R-WPD-48-S 24" Wall Propeller Direct Drive Fan (Steel Prop) For Light Duty Applications Requiring Large Air Volumes.
  15. R-WPD-48-X 24" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  16. R-WPD-54-A 54" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  17. R-WPD-54-X 54" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  18. R-WPD-60-A 60" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  19. R-WPD-60-X 60" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  20. R-WPD-72-A 72" Wall Propeller Direct Drive Fan (Aluminum Prop) For Heavy Duty Applications Requiring Large Air Volumes.
  21. R-WPD-72-X 72" Wall Propeller Direct Drive Fan (Steel Prop) For Heavy Duty Applications Requiring Large Air Volumes.
Log in for parts
