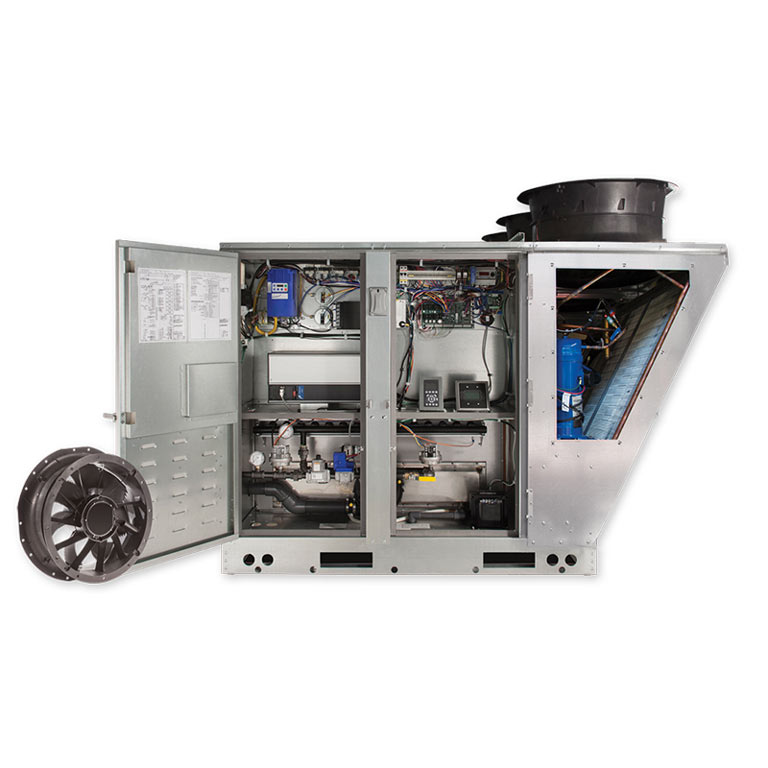

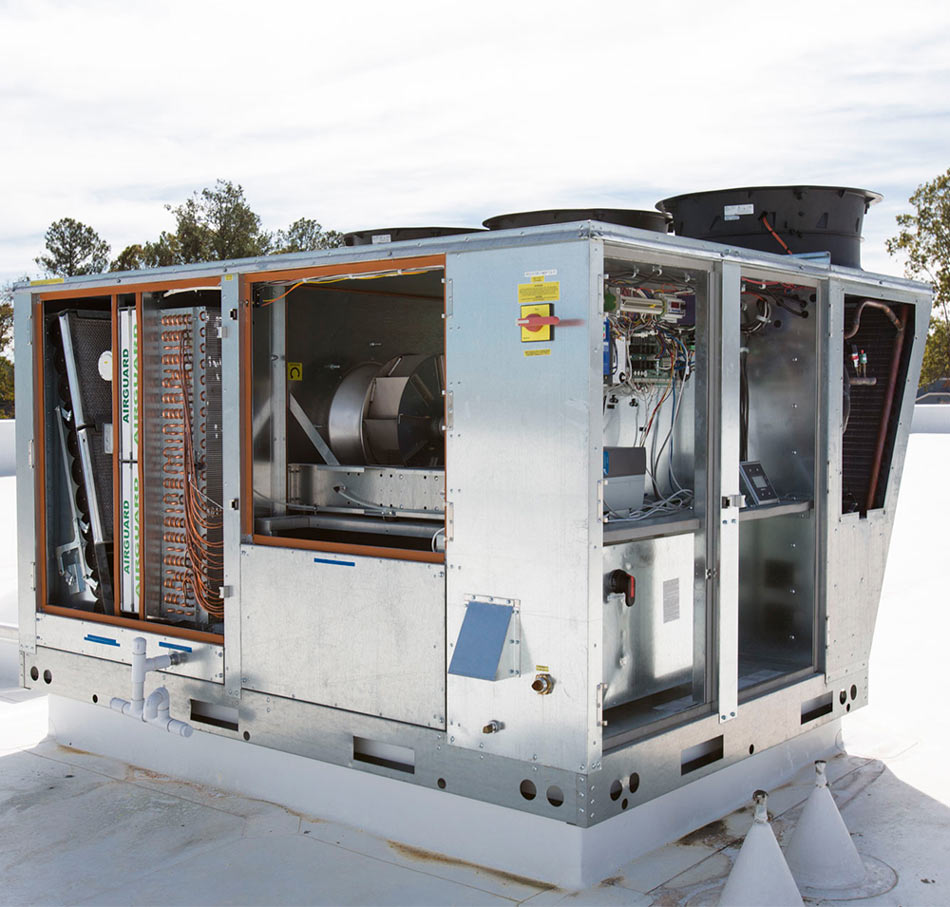

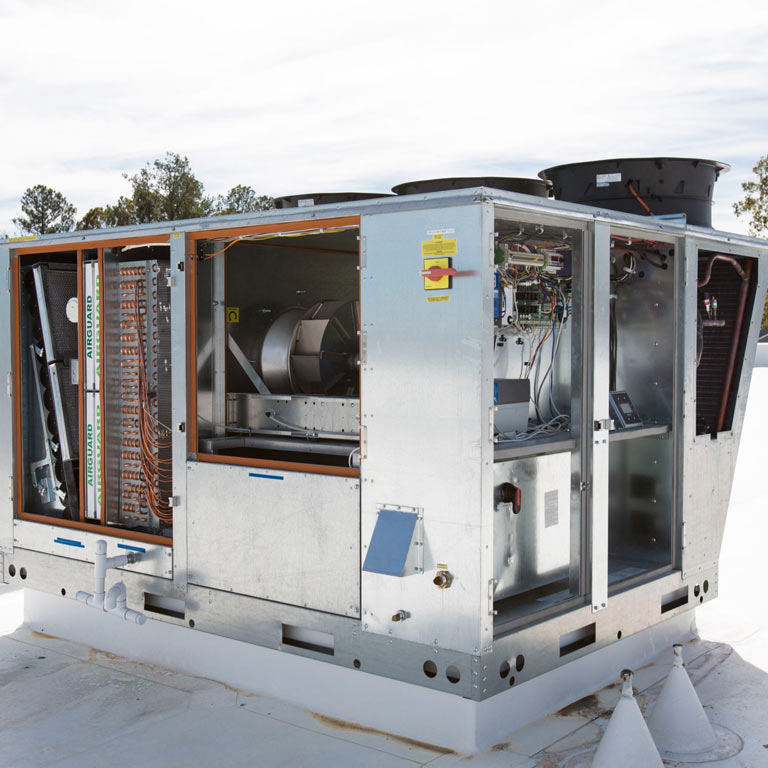

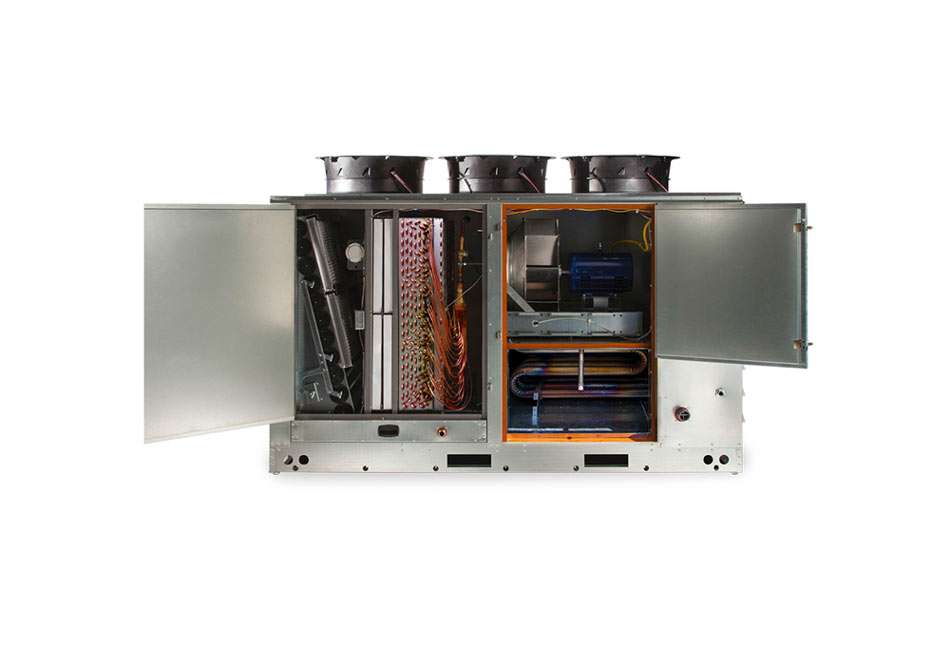

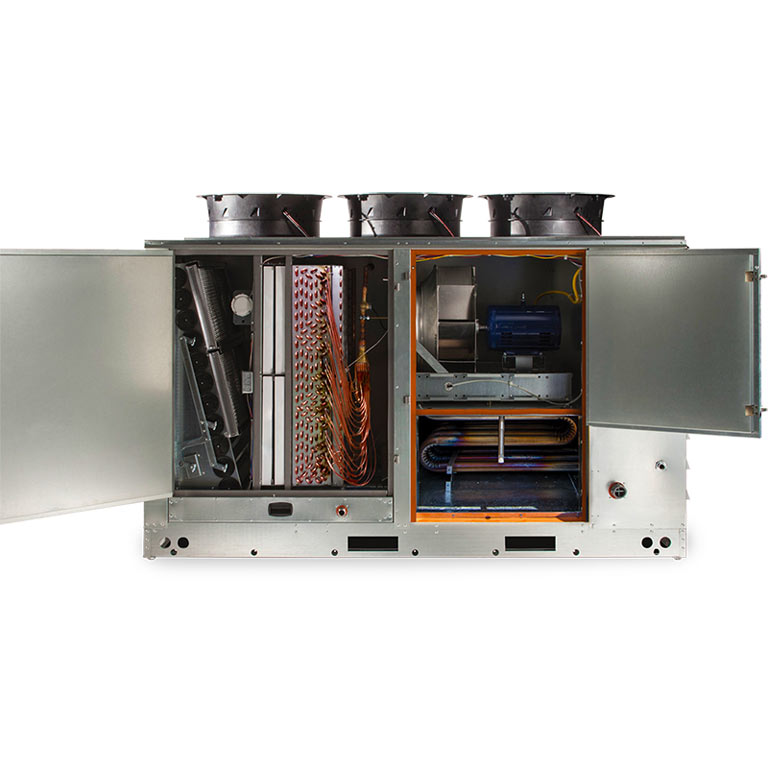

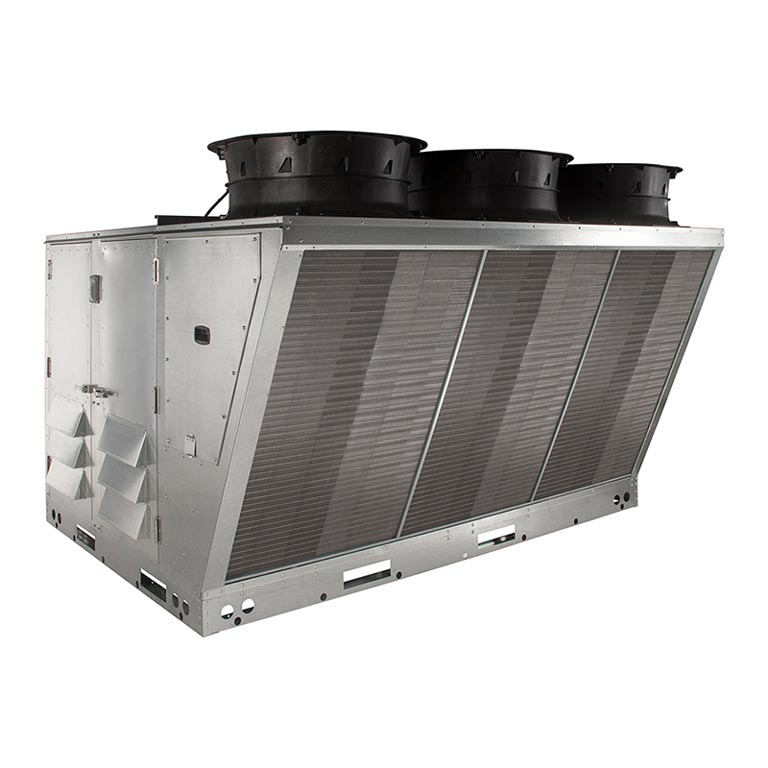

HVAC Unit

RuppAir’s HVAC unit is the ideal HVAC solution offering exceptional energy savings and unprecedented comfort and humidity control.

RuppAir's HVAC unit is designed from its core to conserve energy and save on operating costs. Its rare earth magnet inverter scroll compressor eliminates excessive cycling, premature unit aging, inefficient hard starts, and unnecessary energy consumption. Modulating technologies allow it to deliver the highest efficiencies at part-load conditions.

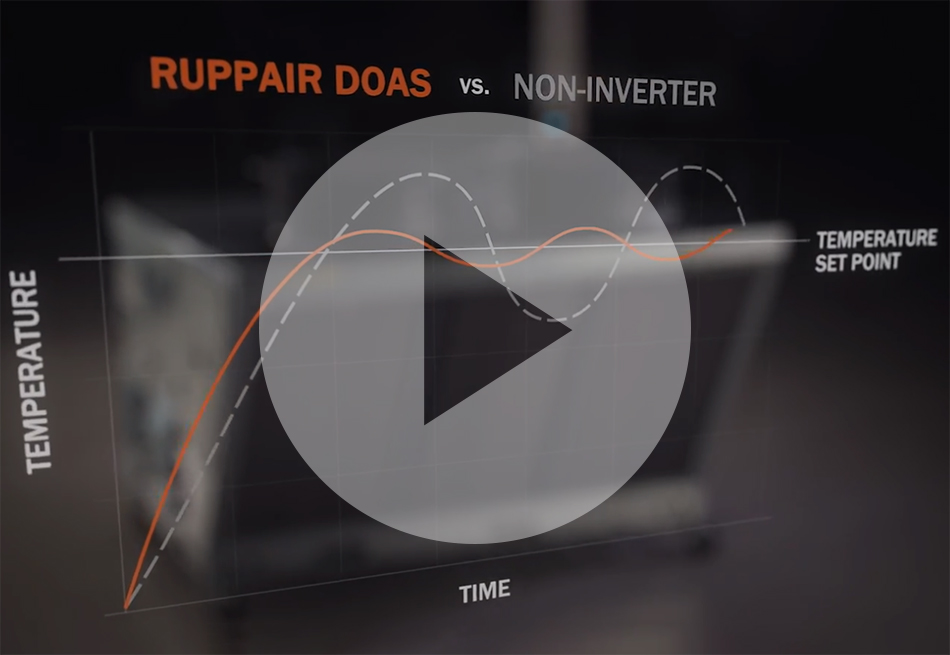

RuppAir's HVAC unit contains fully modulating refrigeration and optional hot gas reheat components that deliver the exact amount of air requested at the desired temperature and humidity. Variable speed components allow the unit to adjust its heating and cooling capacity to match the required load. This provides a consistent temperature throughout the space and avoids large temperature swings often associated with single stage equipment.

RuppAir's HVAC unit achieves an impressive 21.3 IEER rating (Integrated Energy Efficiency Ratio) which is over 1.5x the ASHRAE 90.1-2016 IEER standard. Designed with the future in mind, it is poised to exceed rising IEER standards for years to come.

RuppAir offers unmatched factory service and technical support through its rapidly expanding nationwide service team. Each local service technician undergoes extensive in-house training to ensure your needs are quickly met and problems are thoroughly addressed. Since RuppAir's HVAC unit is a fully standardized equipment line, service techs are able to stock most replacement parts on their trucks, eliminating long lead times often associated with service visits. Additionally, RuppAir's HVAC unit is designed with service in mind, incorporating several convenience features to make support visits as smooth and efficient as possible.

CASLink, RuppAir’s proprietary cloud-based building management system, collects real-time performance data in order to verify proper equipment operation, recognize potential problems, diagnose minor issues, and analyze system efficiency. CASLink allows for remote unit adjustments, often eliminating the need for an onsite service tech visit. Every HVAC unit includes a CASLink system at no additional charge.

Read more
Contact Sales Rep

RuppAir's HVAC Unit

  • Conserve Energy
  • Precise Control
  • Superior Efficiency
  • Industry Best Warranty

RuppAir's HVAC unit is designed from its core to conserve energy and save on operating costs. Its rare earth magnet inverter scroll compressor eliminates excessive cycling, premature unit aging, inefficient hard starts, and unnecessary energy consumption. Modulating technologies allow it to deliver the highest efficiencies at part-load conditions.

RuppAir's HVAC unit contains fully modulating refrigeration and optional hot gas reheat components that deliver the exact amount of air requested at the desired temperature and humidity. Variable speed components allow the unit to adjust its heating and cooling capacity to match the required load. This provides a consistent temperature throughout the space and avoids large temperature swings often associated with single stage equipment.

RuppAir's HVAC unit achieves an impressive 21.3 IEER rating (Integrated Energy Efficiency Ratio) which is over 1.5x the ASHRAE 90.1-2016 IEER standard. Designed with the future in mind, RuppAir's HVAC unit is poised to exceed rising IEER standards for years to come.

RuppAir's HVAC unit comes standard with a 5 year parts warranty. An extended 10 year full unit warranty is included at no extra charge when units are maintained with a CASService Preventative Maintenance subscription (terms and conditions apply). RuppAir's HVAC unit is designed with sustainability in mind and is built to last up to 25 years.

INDUSTRY LEADING LEAD TIMES!

Quick Ship Emergency Units

Emergency Paragon HVAC units ship in 2-3 days.

Factory provided curb adaptors are pre-gasketed and come with an integrated electrical chase as well as power and communication whips for quick and easy replacement of any RTU brand.

Contact your local sales engineer today to order !

Features & Benefits

View complete list of features
  • Mixed Air Temperature / Humidity Sensor
    • Monitors mixed air temperature / humidity
    • Available outdoor, return, mixed, discharge, and space air temperature / humidity measurements
  • Up to Three Layers of Outdoor Air Filtration
    • Standard 2" metal mesh outdoor air filters
    • Up to 4" additional filtration - MERV-8, 13, 15 & HEPA
  • Low-Leakage Outdoor Air Damper
    • Modulates to accurately meet variable outdoor air requirements
    • Integrated louver and bird screen assembly included
    • Exceeds AMCA Class 1A Leakage Standards
  • Wide Indoor Coil Design
    • Up to 10-row coil allows for optimal compressor efficiencies, full conditioning of outdoor air, and moisture control
    • Staggered coil design reduces supply air bypass
    • Chilled Water and Cooling Only options available
  • Electronic Expansion Valve
    • Provides automated superheat control and monitoring by modulating from 0-100%
    • Precise position control prevents liquid migration during off-duty cycles
  • Fully Modulating Hot Gas Reheat Coil (Optional)
    • Provides highly accurate humidity control
    • Electronic reheat valve allows for precise capacity control
  • Stainless Steel Sloped Condensate Drain Pan
    • Removable insulated drain pan allows for easy maintenance and serviceability
    • Float switch monitors water level and protects against condensate overflow
    • Exceeds ASHRAE 62.1 Standards
  • Modular Heating
    • Natural gas indirect fired furnace with constant 81% efficiency throughout modulation (90% high efficiency option available)
    • Propane, Heat Pump, Hot Water, Electric Heat, and Heating Only options available
  • Variable Speed Direct Drive Supply Fan
    • High efficiency Variable Frequency Drive (VFD) or Electronically Commutated Motor (ECM) options available
    • Low maintenance – no belts to adjust
  • Variable Speed Outdoor Fans with EC Motors
    • 10:1 turndown maintains peak efficiency for all outdoor air conditions
    • Aerodynamically designed bionic blades drastically reduce noise emissions
  • Double Wall, Galvanized Steel Construction
    • Insulated with 2" thick, foil-faced, R13 closed cell foam or 1" thick, R4.3 fiberglass board
    • Corrosion resistant, heavy gauge, G-90 galvanized steel
  • Removable Hinged Access Doors
    • Allow for easier maintenance and serviceability
  • Human Machine Interface (HMI)
    • User friendly interface allows for simple programming of temperature, humidity and scheduling settings
    • Access to real time temperature / humidity data and refrigerant temperature / pressure measurements
  • Integrated Controls
    • Multiple PID loops maximize energy efficiency
    • Several control offerings – full integration to BAS/DDC
    • Fully insulated controls cabinet reduces condensation, avoiding damage to controls
  • Danfoss Variable Speed Inverter Scroll Compressor
    • Modulates capacity to provide precise load matching with reduced energy consumption
    • Protective operating envelope minimizes risk of damage and premature failure
    • Variable frequency drive provides phase and over-amp protection to maximize life of unit
  • Mixed Air Temperature / Humidity Sensor

    • Monitors mixed air temperature / humidity
    • Available outdoor, return, mixed, discharge, and space air temperature / humidity measurements
  • Up to Three Layers of Outdoor Air Filtration

    • Standard 2" metal mesh outdoor air filters
    • Up to 4" additional filtration - MERV-8, 13, 15 & HEPA
  • Low-Leakage Outdoor Air Damper

    • Modulates to accurately meet variable outdoor air requirements
    • Integrated louver and bird screen assembly included
    • Exceeds AMCA Class 1A Leakage Standards
  • Wide Indoor Coil Design

    • Up to 10-row coil allows for optimal compressor efficiencies, full conditioning of outdoor air, and moisture control
    • Staggered coil design reduces supply air bypass
    • Chilled Water and Cooling Only options available
  • Electronic Expansion Valve

    • Provides automated superheat control and monitoring by modulating from 0-100%
    • Precise position control prevents liquid migration during off-duty cycles
  • Fully Modulating Hot Gas Reheat Coil (Optional)

    • Provides highly accurate humidity control
    • Electronic reheat valve allows for precise capacity control
  • Stainless Steel Sloped Condensate Drain Pan

    • Removable insulated drain pan allows for easy maintenance and serviceability
    • Float switch monitors water level and protects against condensate overflow
    • Exceeds ASHRAE 62.1 Standards
  • Modular Heating

    • Natural gas indirect fired furnace with constant 81% efficiency throughout modulation (90% high efficiency option available)
    • Propane, Heat Pump, Hot Water, Electric Heat, and Heating Only options available
  • Variable Speed Direct Drive Supply Fan

    • High efficiency Variable Frequency Drive (VFD) or Electronically Commutated Motor (ECM) options available
    • Low maintenance – no belts to adjust
  • Variable Speed Outdoor Fans with EC Motors

    • 10:1 turndown maintains peak efficiency for all outdoor air conditions
    • Aerodynamically designed bionic blades drastically reduce noise emissions
  • Double Wall, Galvanized Steel Construction

    • Insulated with 2" thick, foil-faced, R13 closed cell foam or 1" thick, R4.3 fiberglass board
    • Corrosion resistant, heavy gauge, G-90 galvanized steel
  • Removable Hinged Access Doors

    • Allow for easier maintenance and serviceability
  • Human Machine Interface (HMI)

    • User friendly interface allows for simple programming of temperature, humidity and scheduling settings
    • Access to real time temperature / humidity data and refrigerant temperature / pressure measurements
  • Integrated Controls

    • Multiple PID loops maximize energy efficiency
    • Several control offerings – full integration to BAS/DDC
    • Fully insulated controls cabinet reduces condensation, avoiding damage to controls
  • Danfoss Variable Speed Inverter Scroll Compressor

    • Modulates capacity to provide precise load matching with reduced energy consumption
    • Protective operating envelope minimizes risk of damage and premature failure
    • Variable frequency drive provides phase and over-amp protection to maximize life of unit

System Sizing & Specifications

Enclosure Size 1 2 3 4
Nominal Tonnage 3 4 5 6 7.5 8 10 12.5 15 17.5 20 25 30 22.5 25 30 40 50 60
Min Airflow (CFM) 500 500 500 600 750 800 1000 1250 1500 1750 2000 2500 3000 2200 2500 3000 4000 5000 6000
Max Airflow (CFM) 1200 1600 2000 2400 3000 3200 4000 5000 6000 7000 8000 8000 8000 8800 10000 12000 15000 15000 15000
Indoor Coil Rows 4 4 4 4 5 5 6 6 7 7 7 7 5 5 6 6 8 8
Max Cooling Turndown Ratio 5:1 6:1 7:1 7:1 7:1 7:1 7:1 7:1 6:1 7:1 6:1 7:1 7:1 7:1 7:1 14:1 17.5:1 14:1
IEER 17.9 17.9 17.9 19.5 18.6 20.2 18.6 21.3 18.8 18.2 18.2 14.9 14.9 18.1 17.9 17.8 16.6 17.1 17.0
Max Heating Turndown Ratio* 20:1 20:1 20:1 17:1 14:1 21:1 16:1 25:1 16:1 16:1 16:1 16:1 16:1 18:1
Furnace Input Capacity (MBH) 50 - 260 50 - 440 150 - 685 200 - 800
Electric Coil Capacity (kW) 10 - 60 15 - 60 15 - 100 30 - 240
Curb Size (L x W) 71" x 41" 75" x   49.5" 91" x 59.5" 111" x   80"
Unit Dimensions (L x W x H) 77.25" x 62" x 47.5" 81.75" x   80.75 x 60.75" 99" x 89.75" x 69" 174" x   89.75" x 94"
Approximate Weight (lbs) 1000 - 1250 1650 - 1800 2400 - 3600 4250 - 7500
*Contingent upon heat source

Features

  1. Danfoss variable speed inverter scroll compressor with VFD
  2. Mixed air temperature/humidity sensor measures outdoor, return, mixed, discharge and space air
  3. 2” metal mesh outdoor air filters
  4. Low leakage outdoor air damper, includes integrated louver and bird screen assembly, exceeds AMCA Class 1A leakage standards
  5. Wide staggered indoor coil design
  6. Electronic expansion valve modulates 0-100% providing automated superheat control and monitoring and preventing liquid migration
  7. Stainless steel sloped condensate drain pan, includes float switch and exceeds ASHRAE 62.1 standards
  8. Natural gas indirect fired furnace with constant 81% efficiency through modulation
  9. Variable speed direct drive supply fan
  10. Variable speed outdoor fans with EC motors, 10:1 turndown
  11. Double wall, G-90 galvanized steel insulated with 2” thick, foil-faced, R13 closed cell foam or 1” thick, R4.3 fiberglass board
  12. Removable hinged access doors
  13. User friendly human machine interface (HMI) for easy programming and data measurements
  14. Integrated controls with multiple PID loops to maximize energy efficiency
  15. Fully insulated controls cabinet
  16. CASLink cloud-based building management system

Options

  1. Up to 4” additional filtration – MERV-8, 13, 15, and HEPA
  2. Up to 10-row coil
  3. Fully modulating hot gas reheat coil; allows for precise humidity and capacity control
  4. 90% high efficiency modular heating
  5. Propane, heat pump, or electric heat modular heating
  6. VFD or ECM supply fans
  7. Fully integrated, BAS, or DDC controls

Certifications

RuppAir's HVAC unit is ETL-listed to the following standards: Standard for Safety Heating and Cooling Equipment ANSI/UL 1995, CSA 22.2 no. 236; American National Standard/CSA Standard for Gas Unit Heaters and Gas-Fired Duct Furnaces ANSI Z83.8-2013, CSA 2.6-2013.

RuppAir's HVAC unit has been tested in accordance with the following standards: ANSI/AHRI Standard 340/360 – 2007, ANSI/ASHRAE Standard ANSI/ASHRAE 37 2009.
