(CFA)

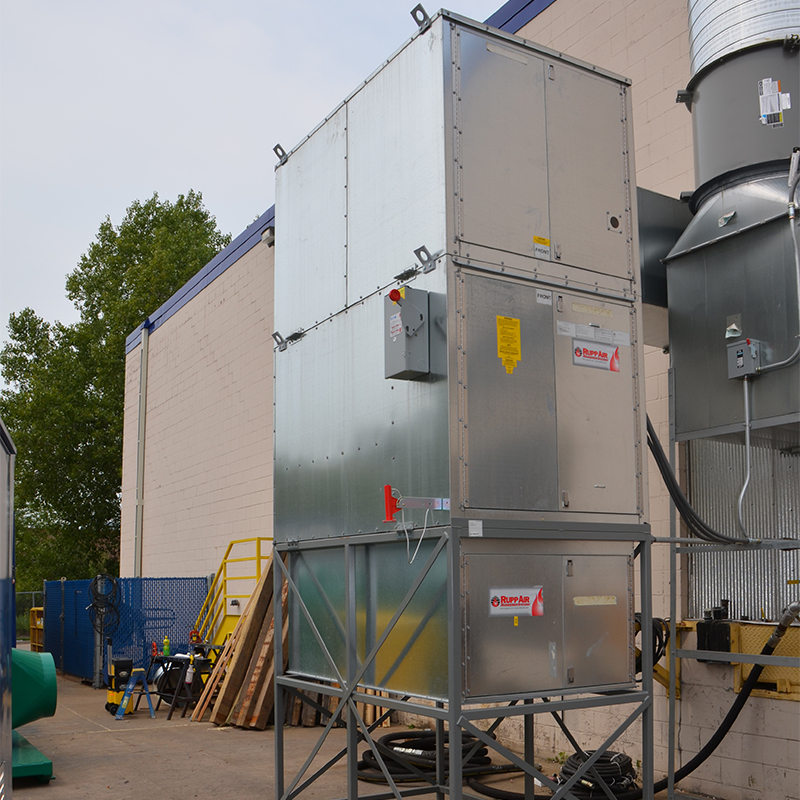

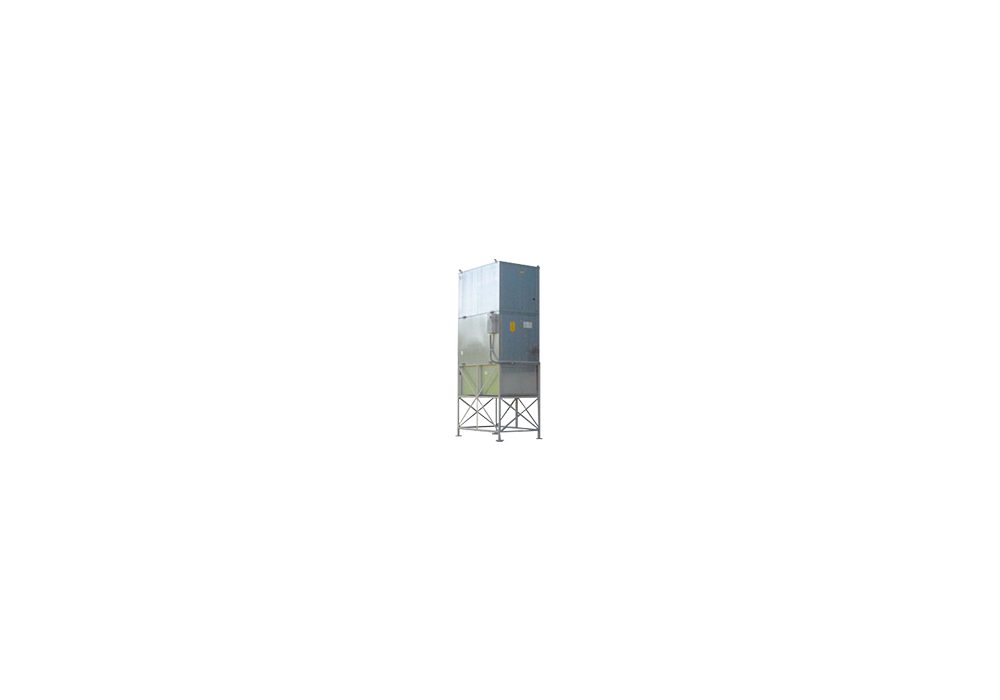

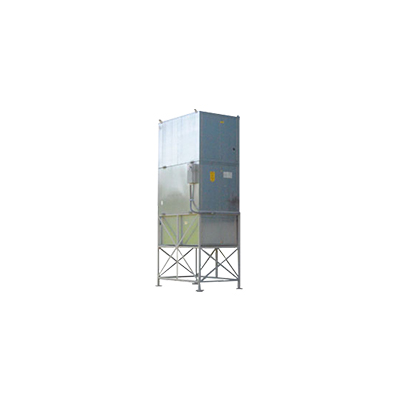

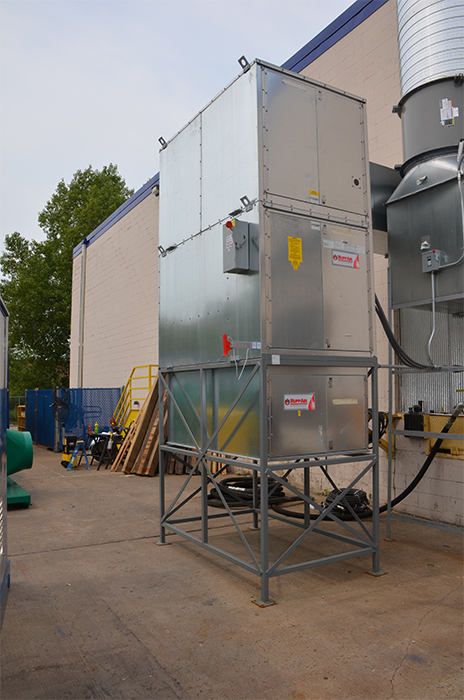

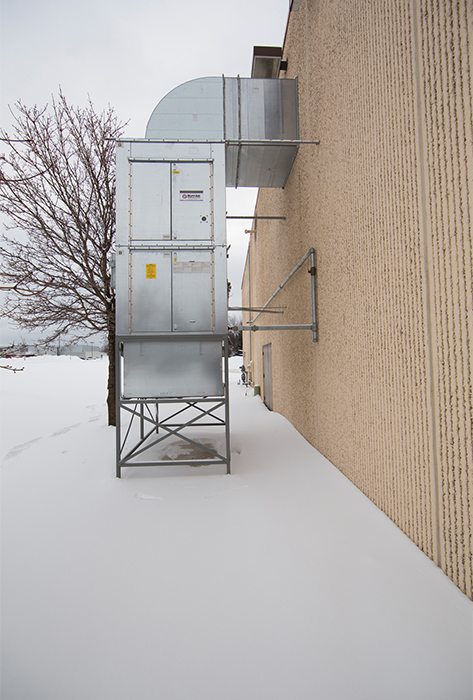

The Industrial Direct Fired Vertical Heater is designed to deliver make-up air for applications requiring high airflow gas heat requirements within a robust tubular frame for 100% outside air applications. Units utilize natural or propane gas with a nearly 100% efficient direct fired burner with indoor or outdoor factory built stand options.

  • Air Volume: 1,000 – 102,000 cfm
  • Maximum SP: 5" wg. @ standard air density
Contact Sales Rep

Features

  1. G-90 galvanized construction
  2. Internal tubular frame
  3. Hinged, double wall service doors with flush-mount latches
  4. Six discharge options
  5. Adjustable profile plates
  6. Wide-range, high capacity line burner with up to 30:1 turndown ratio
  7. Electric pilot spark ignition
  8. Burner economizer thermostat
  9. Burner observation port
  10. Electronic flame safety controls
  11. Airflow proving control
  12. Burner and blower service switches
  13. Standard heavy duty lifting lugs
  14. Fused disconnect
  15. Standard, high E, open drip proof with adjustable motor mount
  16. Motor starters
  17. Weatherproof control vestibule enclosure
  18. Terminal strip for quick service check
  19. Manifold built to required codes (FM/IRI/FIA)

Options

  1. Adjustable pitch motor sheave
  2. 1”, 1.5 lb. casing insulation, includes galvanized steel casing liner
  3. Extended grease lines
  4. Painted casings
  5. Pillow-block bearings, 100,000 hr (standard on all units with an industrial blower)
  6. Discharge damper, two position motor and interlock
  7. Discharge louvers with four way air diffuser
  8. Filter section with removable, hinged access door; includes 2-inch washable aluminum mesh filter or a 2-inch pleated filter, optional insulation
  9. Inlet screen
  10. Return air filter, 80/20 units; 2-inch deep aluminum mesh or 2-inch deep 30% efficient pleated type

Certifications

The CFA Model has been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. and Canadian products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.

Model CFA is ETL Listed under file number 3013648-002 and complies with ANSI Z83.4-Second Edition and CSA 3.7-2006 Standards.

Resources

Models

  1. CFA 10 with 6" burner Vertical Industrial Heater with a 6" burner and a 10" blower.
  2. CFA 10 with 12" burner Vertical Industrial Heater with a 12" burner and a 10" blower.
  3. CFA 10 with 18" burner Vertical Industrial Heater with a 18" burner and a 10" blower.
  4. CFA 12 with 6" burner Vertical Industrial Heater with a 6" burner and a 12" blower.
  5. CFA 12 with 12" burner Vertical Industrial Heater with a 12" burner and a 12" blower.
  6. CFA 12 with 18" burner Vertical Industrial Heater with a 18" burner and a 12" blower.
  7. CFA 15 with 6" burner Vertical Industrial Heater with a 6" burner and a 15" blower.
  8. CFA 15 with 12" burner Vertical Industrial Heater with a 12" burner and a 15" blower.
  9. CFA 15 with 18" burner Vertical Industrial Heater with a 18" burner and a 15" blower.
  10. CFA 15 with 24" burner Vertical Industrial Heater with a 24" burner and a 15" blower.
  11. CFA 18 with 18" burner Vertical Industrial Heater with a 18" burner and a 18" blower.
  12. CFA 18 with 24" burner Vertical Industrial Heater with a 24" burner and a 18" blower.
  13. CFA 18 with 30" burner Vertical Industrial Heater with a 30" burner and a 18" blower.
  14. CFA 18 with 36" burner Vertical Industrial Heater with a 36" burner and a 18" blower.
  15. CFA 20 with 18" burner Vertical Industrial Heater with a 18" burner and a 20" blower.
  16. CFA 20 with 24" burner Vertical Industrial Heater with a 24" burner and a 20" blower.
  17. CFA 20 with 30" burner Vertical Industrial Heater with a 30" burner and a 20" blower.
  18. CFA 20 with 36" burner Vertical Industrial Heater with a 36" burner and a 20" blower.
  19. CFA 20 with 42" burner Vertical Industrial Heater with a 42" burner and a 20" blower.
  20. CFA 20 with 48" burner Vertical Industrial Heater with a 48" burner and a 20" blower.
  21. CFA 22 with 30" burner Vertical Industrial Heater with 30" burner and 22" blower.
  22. CFA 22 with 36" burner Vertical Industrial Heater with 36" burner and 22" blower.
  23. CFA 22 with 42" burner Vertical Industrial Heater with 42" burner and 22" blower.
  24. CFA 22 with 48" burner Vertical Industrial Heater with 48" burner and 22" blower.
  25. CFA 22 with 54" burner Vertical Industrial Heater with 54" burner and 22" blower.
  26. CFA 22 with 66" burner Vertical Industrial Heater with 66" burner and 22" blower.
  27. CFA 25 with 36" burner Vertical Industrial Heater with 36" of burner and 25" blower.
  28. CFA 25 with 48" burner Vertical Industrial Heater with 48" of burner and 25" blower.
  29. CFA 25 with 60" burner Vertical Industrial Heater with 60" of burner and 25" blower.
  30. CFA 25 with 72" burner Vertical Industrial Heater with 72" of burner and 25" blower.
  31. CFA 25 with 84" burner Vertical Industrial Heater with 84" of burner and 25" blower.
  32. CFA 27 with 36" burner Vertical industrial heater with 36" burner and 27" blower.
  33. CFA 27 with 48" burner Vertical industrial heater with 48" of burner and 27" blower.
  34. CFA 27 with 60" burner Vertical industrial heater with 60" of burner and 27" blower.
  35. CFA 27 with 72" burner Vertical industrial heater with 72" of burner and 27" blower.
  36. CFA 27 with 84" burner Vertical industrial heater with 84" of burner and 27" blower.
  37. CFA 27 with 96" burner Vertical industrial heater with 96" of burner and 27" blower.
  38. CFA 27 with 108" burner Vertical industrial heater with 108" of burner and 27" blower.
  39. CFA 30 with 60" burner Vertical industrial heater with 60" of burner and 30" blower.
  40. CFA 30 with 72" burner Vertical industrial heater with 72" of burner and 30" blower.
  41. CFA 30 with 84" burner Vertical industrial heater with 84" of burner and 30" blower.
  42. CFA 30 with 96" burner Vertical industrial heater with 96" of burner and 30" blower.
  43. CFA 30 with 108" burner Vertical industrial heater with 108" of burner and 30" blower.
  44. CFA 30 with 120" burner Vertical industrial heater with 120" of burner and 30" blower.
  45. CFA 30 with 132" burner Vertical industrial heater with 132" of burner and 30" blower.
  46. CFA 33 with 72" burner Vertical industrial heater with 72" of burner and 33" blower.
  47. CFA 33 with 84" burner Vertical industrial heater with 84" of burner and 33" blower.
  48. CFA 33 with 96" burner Vertical industrial heater with 96" of burner and 33" blower.
  49. CFA 33 with 108" burner Vertical industrial heater with 108" of burner and 33" blower.
  50. CFA 33 with 120" burner Vertical industrial heater with 120" of burner and 33" blower.
  51. CFA 33 with 132" burner Vertical industrial heater with 132" of burner and 33" blower.
  52. CFA 33 with 144" burner Vertical industrial heater with 144" of burner and 33" blower.
  53. CFA 36 with 72" burner Vertical industrial heater with 72" of burner and 36" blower.
  54. CFA 36 with 84" burner Vertical industrial heater with 84" of burner and 36" blower.
  55. CFA 36 with 96" burner Vertical industrial heater with 96" of burner and 36" blower.
  56. CFA 36 with 108" burner Vertical industrial heater with 108" of burner and 36" blower.
  57. CFA 36 with 120" burner Vertical industrial heater with 120" of burner and 36" blower.
  58. CFA 36 with 132" burner Vertical industrial heater with 132" of burner and 36" blower.
  59. CFA 36 with 144" burner Vertical industrial heater with 144" of burner and 36" blower.
  60. CFA 36 with 162" burner Vertical industrial heater with 162" of burner and 36" blower.
  61. CFA 36 with 174" burner Vertical industrial heater with 174" of burner and 36" blower.
