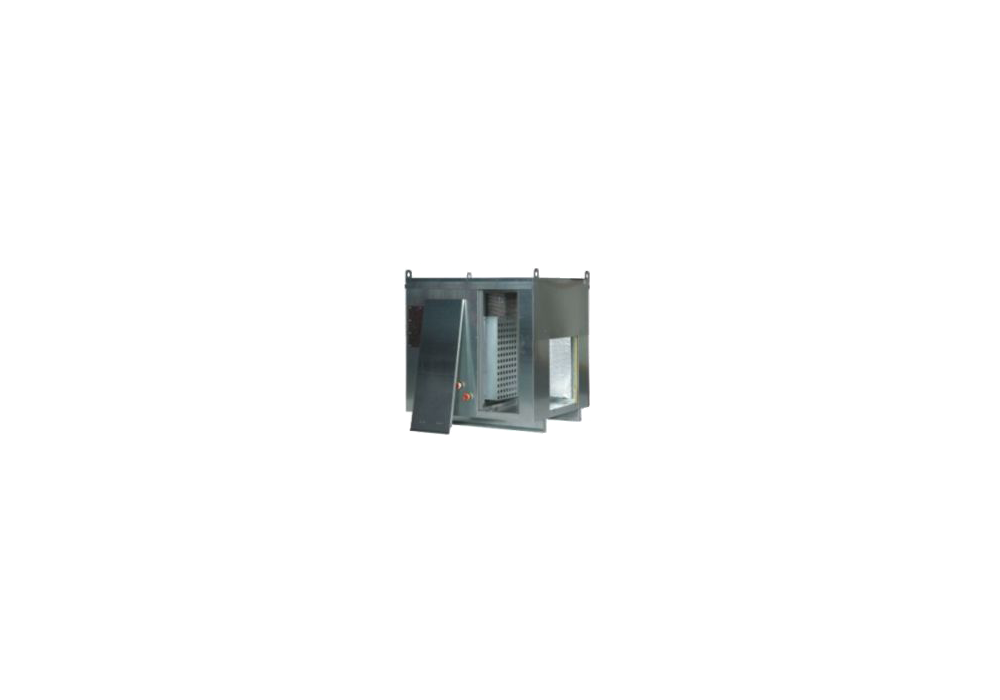

Steam Coil Module

This steam coil housing has been designed so that there is easy access to either side of the coil. Oversized doors offer plenty of room through which to clean and maintain the coil from either side of the housing. Blank off plates secure the coil and help maintain the proper velocity across the coil. The modular design also lends itself to easier installations since modules bolt together on location.

Uniform steam distribution to each of the coil core tubes is accomplished by proper header assembly design. The steam supply connection should be located in the center of the header, with a perforated plate type baffle located directly behind this connection. Properly sized orifices are located in each of the core tube entrances into the header.

Coils are "freeze resistant," also known as the dual-tube design. It is important to note that any steam coil can freeze when exposed to freezing temperatures without the proper drainage of the condensate. This coil design utilizes a smaller inner tube, with precisely spaced, directional, orifice type perforations. This is to help direct condensate flow to the return header.

Read more
Contact Sales Rep

Features

  1. Easy access to both sides of the coil making maintenance on the coil easier
  2. Fully removable access doors on both sides of the housing
  3. Coil connections protrude from the housing making installation easier
  4. Housing constructed from G90 galvanized steel
  5. Blank off plates secure the coil and maintain velocities
  6. Max BTU’s 1,322,830
  7. Copper coil tubing
  8. Free floating coil core design to expand and contract in the casing
  9. 2 coil rows
  10. Galvanized steel coil casing
  11. Copper sweat coil connections
  12. Coil vents and drains
  13. .0075 aluminum fins
