RPHREB-RA

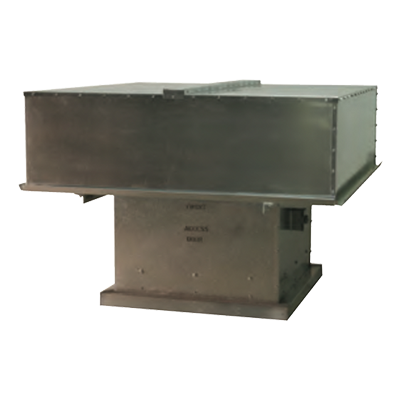

BELT DRIVE DOWNBLAST PROPELLER ROOF EXHAUSTER

(RPHREB-RA)

Heavy gauge aluminum hood, propellers, large opening for efficient airflow. For applications requiring a wide range of airflows.

  • Air Volume: 1,190 – 47,000 cfm
  • Maximum SP: 0.75" wg. @ standard air density
Contact Sales Rep

Features

  1. Hood and framework constructed of heavy gauge aluminum
  2. Bolted-on hood provides easy access to motor drive compartment
  3. Large hood provides full perimeter opening for efficient air flow and weather protection
  4. Welded tubular steel frame supports motor, propeller and drive assembly
  5. Adjustable pitch aluminum airfoil propeller
  6. Non-overloading design for safe operation
  7. Precision balanced for smooth vibration free operation
  8. Disconnect Switch
  9. Permanently lubricated pillow block bearings rated at L50 life of 200,000 hours

Options

  1. Heavy duty damper
  2. Roof curbs
  3. High wind tie down
  4. Hood insulation
  5. Bird screen

Certifications

RuppAir certifies that Models RPHREB24-RA thru RPHREB60-RA shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and Publication 311, and comply with the requirements of the AMCA Certified Rating Program.

Models RPHREB24-RA thru RPHREB60-RA are ETL Listed under file numbers 102628244PRT-001 and comply with UL705 (electrical). Standards and CSA Std C22.2, No 113.

Catalog #109R

March 2009

Resources

Models

  1. RPHREB24-RA 24" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
  2. RPHREB30-RA 30" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
  3. RPHREB36-RA 36" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
  4. RPHREB42-RA 42" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
  5. RPHREB48-RA 48" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
  6. RPHREB54-RA 54" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
  7. RPHREB60-RA 60" Aluminum Propeller Low Silhouette Belt Drive Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Lead Time 3 Weeks.
