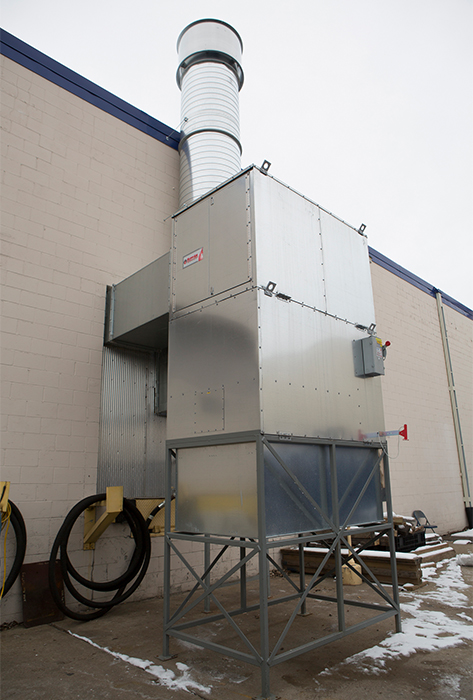

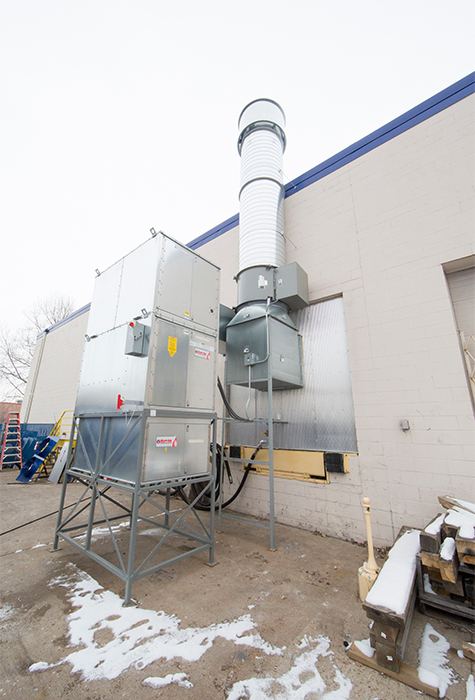

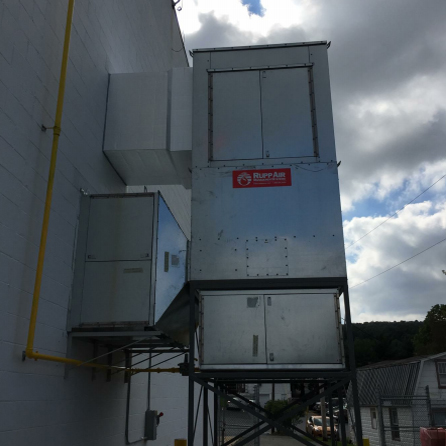

Vertical Industrial Direct Fired Recirculating Heater

(CFA-M)

The Industrial Direct Fired Vertical Recirculating Heater is designed to deliver make-up air for applications requiring high airflow gas heat requirements within a robust tubular frame for variable fresh air to return air volumes. This model offers a factory mounted fresh air and return air damper that varies the amount of air bypassing the burner based on recirculating needs. Units are designed for natural or propane gas with a nearly 100% efficient direct fired burner with indoor or outdoor factory built stand options.

  • Air Volume: 2,000 – 92,000 cfm
  • Maximum SP: 2" wg. @ standard air density
Contact Sales Rep

Features

  1. G-90 galvanized construction
  2. Internal tubular frame
  3. Hinged, double wall service doors with flush-mount latches
  4. 80/20, 60/40, 50/50 fresh air to return air options
  5. Six discharge options
  6. Adjustable profile plates
  7. Wide-range, high capacity line burner with up to 30:1 turndown ratio
  8. Electric pilot spark ignition
  9. Burner economizer thermostat
  10. Burner observation port
  11. Electronic flame safety controls
  12. Airflow proving control
  13. Burner and blower service switches
  14. Standard heavy duty lifting lugs
  15. Fused disconnect
  16. Standard, high E, open drip proof with adjustable motor mount
  17. Motor starters
  18. Weatherproof control vestibule enclosure
  19. Terminal strip for quick service check
  20. Manifold built to required codes (FM/IRI/FIA)

Options

  1. Adjustable pitch motor sheave
  2. 1”, 1.5 lb. casing insulation, includes galvanized steel casing liner
  3. Extended grease lines
  4. Painted casings
  5. Pillow-block bearings, 100,000 hr (standard on all units with an industrial blower)
  6. Discharge damper, two position motor and interlock
  7. Discharge louvers with four way air diffuser
  8. Filter section with removable, hinged access door; includes 2-inch washable aluminum mesh filter or a 2-inch pleated filter, optional insulation
  9. Inlet screen
  10. Return air filter, 80/20 units; 2-inch deep aluminum mesh or 2-inch deep 30% efficient pleated type

Certifications

The CFA-M Model has been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.

Model CFA-M is ETL Listed under file number 3035352-002 and complies with ANSI Z83.18-2001 Standards.

Resources

Models

  1. CFA-M 12 with 6" burner Vertical Recirculating Industrial Heater with a 6" burner and a 12" blower.
  2. CFA-M 12 with 12" burner Vertical Recirculating Industrial Heater with a 12" burner and a 12" blower.
  3. CFA-M 15 with 6" burner Vertical Recirculating Industrial Heater with a 6" burner and a 15" blower.
  4. CFA-M 15 with 12" burner Vertical Recirculating Industrial Heater with a 12" burner and a 15" blower.
  5. CFA-M 15 with 18" burner Vertical Recirculating Industrial Heater with a 18" burner and a 15" blower.
  6. CFA-M 18 with 18" burner Vertical Recirculating Industrial Heater with a 18" burner and a 18" blower.
  7. CFA-M 18 with 24" burner Vertical Recirculating Industrial Heater with a 24" burner and a 18" blower.
  8. CFA-M 18 with 30" burner Vertical Recirculating Industrial Heater with a 30" burner and a 18" blower.
  9. CFA-M 20 with 18" burner Vertical Recirculating Industrial Heater with a 18" burner and a 20" blower.
  10. CFA-M 20 with 24" burner Vertical Recirculating Industrial Heater with a 24" burner and a 20" blower.
  11. CFA-M 20 with 30" burner Vertical Recirculating Industrial Heater with a 30" burner and a 20" blower.
  12. CFA-M 20 with 36" burner Vertical Recirculating Industrial Heater with a 36" burner and a 20" blower.
  13. CFA-M 22 with 24" burner Vertical Recirculating Industrial Heater with a 24" burner and a 22" blower.
  14. CFA-M 22 with 30" burner Vertical Recirculating Industrial Heater with a 30" burner and a 22" blower.
  15. CFA-M 22 with 48" burner Vertical Recirculating Industrial Heater with a 48" burner and a 22" blower.
  16. CFA-M 22 with 54" burner Vertical Recirculating Industrial Heater with a 54" burner and a 22" blower.
  17. CFA-M 25 with 36" burner Vertical Recirculating Industrial Heater with a 36" burner and a 25" blower.
  18. CFA-M 25 with 48" burner Vertical Recirculating Industrial Heater with a 48" burner and a 25" blower.
  19. CFA-M 25 with 60" burner Vertical Recirculating Industrial Heater with a 60" burner and a 25" blower.
  20. CFA-M 25 with 72" burner Vertical Recirculating Industrial Heater with a 72" burner and a 25" blower.
  21. CFA-M 27 with 48" burner Vertical Recirculating Industrial Heater with a 48" burner and a 27" blower.
  22. CFA-M 27 with 60" burner Vertical Recirculating Industrial Heater with a 60" burner and a 27" blower.
  23. CFA-M 27 with 72" burner Vertical Recirculating Industrial Heater with a 72" burner and a 27" blower.
  24. CFA-M 27 with 84" burner Vertical Recirculating Industrial Heater with a 84" burner and a 27" blower.
  25. CFA-M 30 with 60" burner Vertical Recirculating Industrial Heater with a 60" burner and a 30" blower.
  26. CFA-M 30 with 72" burner Vertical Recirculating Industrial Heater with a 72" burner and a 30" blower.
  27. CFA-M 30 with 84" burner Vertical Recirculating Industrial Heater with a 84" burner and a 30" blower.
  28. CFA-M 33 with 72" burner Vertical Recirculating Industrial Heater with a 72" burner and a 33" blower.
  29. CFA-M 33 with 84" burner Vertical Recirculating Industrial Heater with a 84" burner and a 33" blower.
  30. CFA-M 33 with 96" burner Vertical Recirculating Industrial Heater with a 96" burner and a 33" blower.
  31. CFA-M 33 with 108" burner Vertical Recirculating Industrial Heater with a 108" burner and a 33" blower.
  32. CFA-M 36 with 72" burner Vertical Recirculating Industrial Heater with a 72" burner and a 36" blower.
  33. CFA-M 36 with 84" burner Vertical Recirculating Industrial Heater with a 84" burner and a 36" blower.
  34. CFA-M 36 with 96" burner Vertical Recirculating Industrial Heater with a 96" burner and a 36" blower.
  35. CFA-M 36 with 108" burner Vertical Recirculating Industrial Heater with a 108" burner and a 36" blower.
  36. CFA-M 36 with 120" burner Vertical Recirculating Industrial Heater with a 120" burner and a 36" blower.
  37. CFA-M 36 with 126" burner Vertical Recirculating Industrial Heater with a 126" burner and a 36" blower.
