BDCR-RA
BDCR-RA

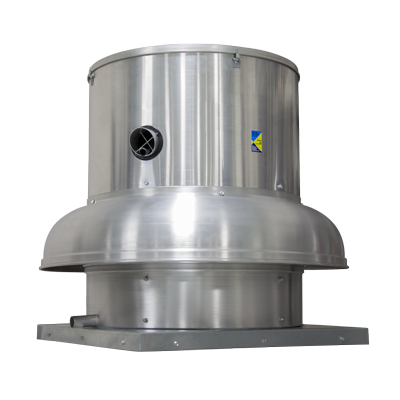

Centrifugal Downblast Belt Drive Fan

(BDCR-RA)

Belt Drive. For general ventilation applications, draws more air under moderate static pressures.

  • Air Volume: 2 – 24,500 cfm
  • Maximum SP: 3.5" wg. @ standard air density
Contact Sales Rep

Features

  1. A wide variety of motors are available to meet specific application needs
  2. Heavy duty construction, durable and weather resistant
  3. Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
  4. Wall mount applications, units up to 24" nominal wheel can be wall mounted
  5. Forced fresh air through the motor compartment cools motor and ensures long motor life
  6. Quick release latches allow for easy access to motor compartment on 18" thru 36" units
  7. Standard bird screen
  8. Variable pitch motor pulley allows for field adjustment and system balancing
  9. High efficiency combined with low tip speeds result in quiet operation
  10. Standard emergency disconnect switch

Options

  1. Gravity damper
  2. Motorized damper
  3. Wall mount sleeve
  4. Roof curb
  5. Extra set of v-belts

Certifications

RuppAir certifies that Models BDCR7RA thru BDCR36RA shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and Publication 311, and comply with the requirements of the AMCA Certified Rating Program.

Models BDCR7RA thru BDCR36RA are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.

Catalog #109R

January 2018

Resources

Models

  1. BDCR7RA Centrifugal downblast belt drive exhaust fan with a 11.75" wheel.
  2. BDCR8RA Centrifugal downblast belt drive exhaust fan with an 11.75" wheel.
  3. BDCR9RA Centrifugal downblast belt drive exhaust fan with a 11.75" wheel.
  4. BDCR11RA Centrifugal downblast belt drive exhaust fan with an 11.75" wheel.
  5. BDCR13RA Centrifugal downblast belt drive exhaust fan with a 13.75" wheel.
  6. BDCR15RA Centrifugal downblast belt drive exhaust fan with a 15.75" wheel.
  7. BDCR18RA Centrifugal downblast belt drive exhaust fan with an 18.75" wheel.
  8. BDCR20RA Centrifugal downblast belt drive exhaust fan with a 20.75" wheel.
  9. BDCR24RA Centrifugal downblast belt drive exhaust fan with a 24.75" wheel.
  10. BDCR30RA Centrifugal downblast belt drive exhaust fan with a 30.75" wheel.
  11. BDCR36RA Centrifugal downblast belt drive exhaust fan with a 36.75" wheel.
